Hardware Installation & Fire-Rated Approved Hardware

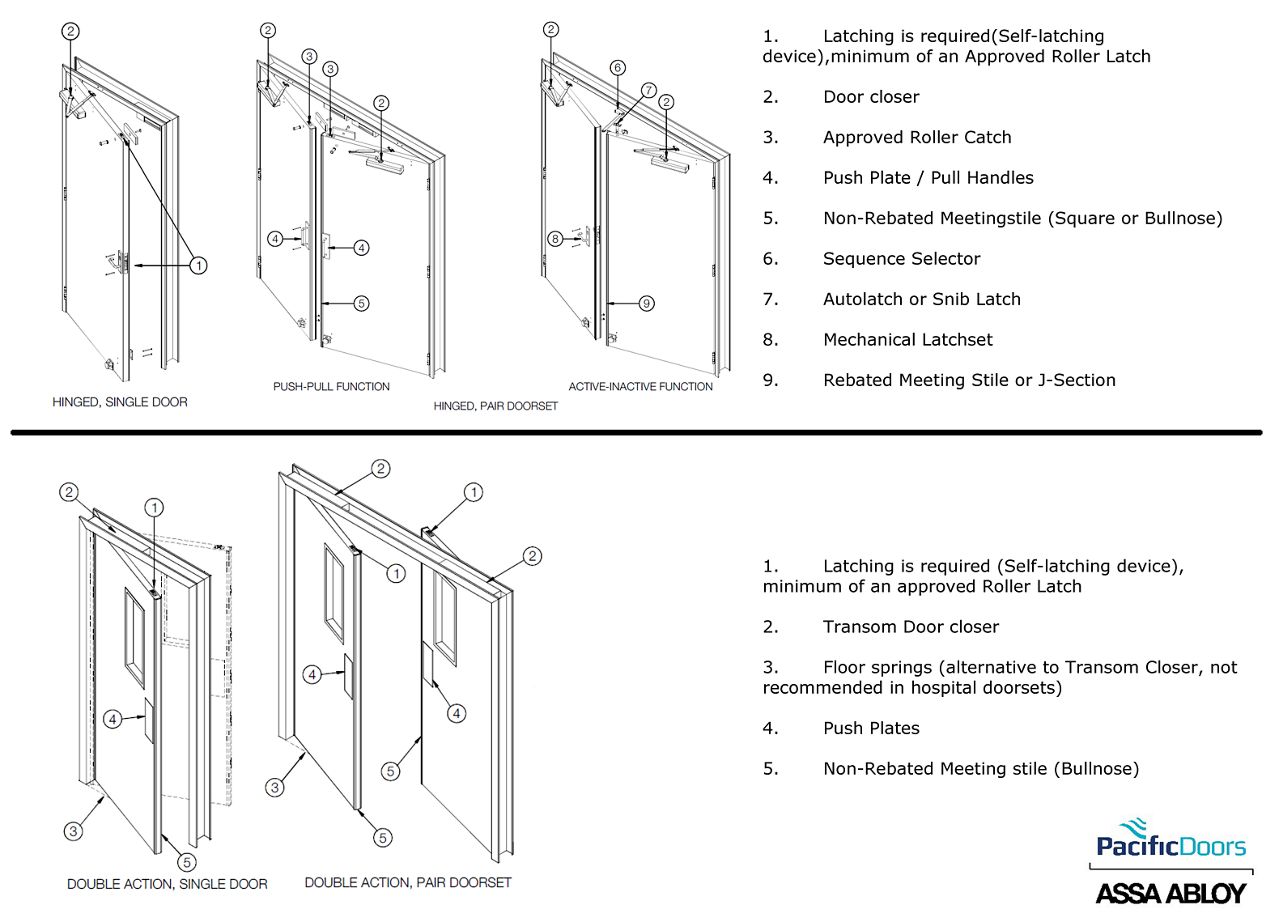

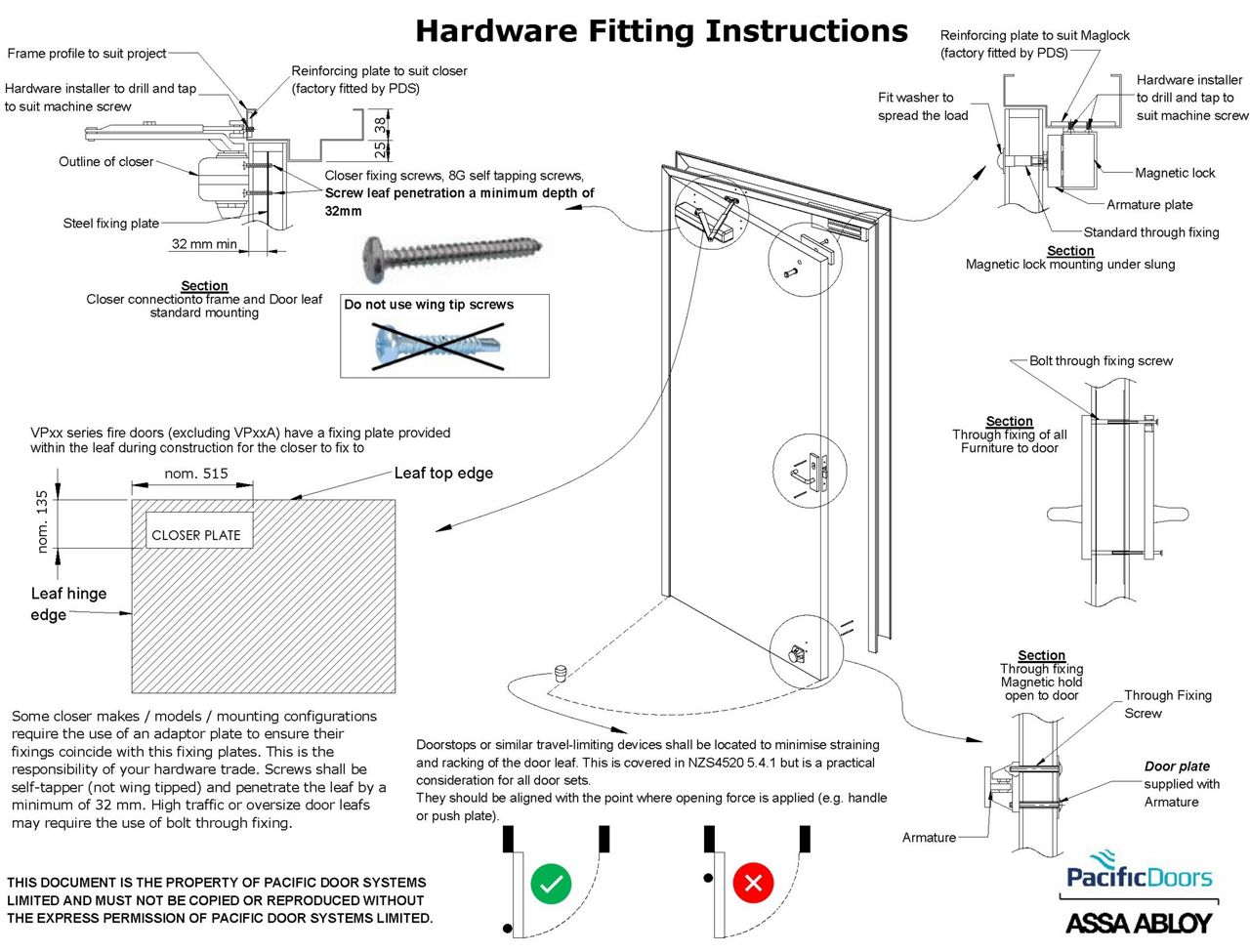

This page provides instructions for correctly installing hardware on our doors.
You'll also find a comprehensive list of fire-rated approved hardware, tested and certified for use with our door systems.
Whether you're a contractor, installer, or inspector, this resource ensures you're using the right components to meet code requirements and maintain fire safety ratings.
On this page
FRR Approved Hardware
1,682 results
Category | Brand | Series | Door Code | Expiry Date |
|---|---|---|---|---|
Closer - Concealed Closers | Lockwood | 8014, steel frame only (Special rail required) (ASSA ABLOY 8014) Note: • Installation instructions refer to techspec • Maximum allowable opening is 90 degrees • Steel framed doorsets only | VP30A, VP60A, VP30, VP60, VP60HR, VP90, VP120 | 20/10/2034 |
Closer - Surface Mounted Closers | Abloy | DC335 series (without hold open arm DC191 or hold open device DC152) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Abloy | DC240 series (without hold open arm DC191 or hold open device DC152) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Abloy | Module 230 series | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 25/08/2026 |
Closer - Surface Mounted Closers | Abloy | DC250 series (without hold open arm DC191 or hold open device DC152) | F1.5, F0.5 | 01/01/2026 |
Closer - Surface Mounted Closers | Abloy | Module 230 series | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Abloy | Module 230 series | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Abloy | DC330 series + opening damper DC153 (without hold open arm DC191 or hold open device DC152) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Abloy | DC330 series + opening damper DC153 (without hold open arm DC191 or hold open device DC152) | F1.5, F0.5 | 01/01/2026 |
Closer - Surface Mounted Closers | Abloy | DC335 series (without hold open arm DC191 or hold open device DC152) | F1.5, F0.5 | 01/01/2026 |
Closer - Surface Mounted Closers | Abloy | DC240 series (without hold open arm DC191 or hold open device DC152) | F1.5, F0.5 | 01/01/2026 |
Closer - Surface Mounted Closers | Abloy | DC250 series (without hold open arm DC191 or hold open device DC152) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Abus | AC7436 door closer | XT60 | 29/02/2036 |
Closer - Surface Mounted Closers | Accord | 90 (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Accord | 90 (obsolete) | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Arrow | 7x7 Series Surface mounted (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Arrow | A2400 (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Arrow | 4080 Series | F1.5, F0.5 | 01/01/2026 |
Closer - Surface Mounted Closers | Arrow | A2600 (obsolete) | VP30A, VP60A | 01/01/2026 |
Closer - Surface Mounted Closers | Arrow | ACD24SIL & ACD25SIL (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90 | 01/01/2026 |
Closer - Surface Mounted Closers | Arrow | A2400 (with or without slide rail) (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Arrow | 727, 737, 747 | F1.5, F0.5 | 01/01/2026 |
Closer - Surface Mounted Closers | Arrow | 7x7 Series Surface mounted (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Arrow | A2600 (with or without slide rail) (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | ASSA ABLOY | SW200i Electric Door Operator (with slider track). Door requires intumescent (Pyropanel 10 x 3mm) exposed at door head. (mounted to masonry wall or extended steel frame head - please contact PDS for details) Note: • Closer mounted to the concrete or masonry wall/lintel. | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 25/10/2034 |
Closer - Surface Mounted Closers | ASSA ABLOY | SW300 Door Closer (mounted to masonry wall or extended steel frame head - please contact PDS for details) Note: • Closer mounted to the concrete or masonry wall/lintel. | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 25/10/2034 |
Closer - Surface Mounted Closers | ASSA ABLOY | 7714DASIL, 7714DASSS, 7714SRDASIL, 7726DASIL, 7726DASSS, 77265SRDASIL, 7726SRDASSS | TB60, TB30 | 29/02/2036 |
Closer - Surface Mounted Closers | Besam | Power Swing EDO, masonry wall mount Note: • Closer mounted to the concrete or masonry wall/lintel. | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 25/10/2034 |
Closer - Surface Mounted Closers | Besam | SW100 Door Closer (mounted to masonry wall or extended steel frame head - please contact PDS for details) Note: • Closer mounted to the concrete or masonry wall/lintel. | VP30A, VP60A | 25/10/2034 |
Closer - Surface Mounted Closers | Boyd / Axim | 1500 BC (obsolete) | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Boyd / Axim | 1024 Series (surface mounted closers with plastic covers may only be included where the leaf is fitted with intumescent seals set into grooved edge strips of Greenboard at head and sill. Without these seals the fire resistance is limited to 90 min) (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90 | 01/01/2026 |
Closer - Surface Mounted Closers | Boyd / Axim | 7000/1000BC (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Boyd / Axim | 7000/1000BC (obsolete) | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Boyd / Axim | 1500 BC (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Boyd Sentronic | 4010/4110 (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Boyd Sentronic | 4010/4110 (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 996 electromagnetic (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 5000 | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | BNT2700 | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 31/10/2028 |
Closer - Surface Mounted Closers | Briton | 2700 series slide track closer | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 220 series without hold open (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 2300 Slide track closer. Note: Hold Open versions are not approved | VP30A, VP60A | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | BNT2700 | SPS1-FR, SPS1-E | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 81 series | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 25/08/2026 |
Closer - Surface Mounted Closers | Briton | 1130 | AFD300 | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 1130B.T (track option) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 81 series | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 121.5 series | F1.5, F0.5 | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 2300, 2700 series cam action closer | TB60, TB30 | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 5000 | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 25/08/2026 |
Closer - Surface Mounted Closers | Briton | 1110 (excluding hold-open versions). Door requires intumescent (Pyropanel 10 x 3mm) exposed at door head Note: • Surface mounted closers may only be included on FR leaves where the leaf is fitted with intumescent seals at the head of the leaf. | VP30, VP60 | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 200 series (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 2000 series | TB60, TB30 | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 81 series | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 2000 series | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 1120B,BNT-1120B-T, 1130B,BNT1130B-T | SPS1-FR, SPS1-E | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 2700 Slide track closer. Note: Hold Open versions are not approved | VP30A, VP60A | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 1120B,BNT-1120B-T, 1130B,BNT1130B-T | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 26/10/2033 |
Closer - Surface Mounted Closers | Briton | 121.5 series | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 220 series without hold open (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 1000 series | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 3934 | TB60, TB30 | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 5000 | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 2508S (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 1130B (NT222) | TB60, TB30 | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 2508S (obsolete) | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 996 electromagnetic (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 1000 series | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 1120B (NT220), NT121, NT221 | TB60, TB30 | 29/02/2036 |
Closer - Surface Mounted Closers | Briton | 200 series (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Briton | 222 series without hold open (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR | 01/01/2026 |
Closer - Surface Mounted Closers | Buy Locks Direct | DCFRS1 | VP30A, VP60A | 01/01/2026 |
Closer - Surface Mounted Closers | Carbine | CDC-1, CDC-3, CDC-5, CDC-1A, CDC-3A, CDC-5A standard arm or link arm | VP30A, VP60A, VP30, VP60, VP90, VP120 | 31/01/2029 |
Closer - Surface Mounted Closers | Corbin | 500 series | TB60 | 29/02/2036 |
Closer - Surface Mounted Closers | Corbin | 500 series | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Delta | 70BC Series (obsolete) | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Delta | 70BC Series (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Designer Doorware | DC-H24-SL | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Designer Doorware | DC-M3-SL including 9000ST and 9000FS | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Designer Doorware | DC-M2-SL | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Designer Doorware | DC-M2-SL | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Designer Doorware | DC-H26-SL including 9000ST and 9000FS slide rails | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Designer Doorware | DC-H25-SL with regular, parallel or slide track Note: • Applies to 48 mm nominal thick leaf only. | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 27/11/2033 |
Closer - Surface Mounted Closers | Designer Doorware | DC-H26-SL including 9000ST and 9000FS slide rails | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Designer Doorware | DC-H24-SL | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Designer Doorware | DC-M3-SL including 9000ST and 9000FS | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Dor-o-matic | SC60, SC80 | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Doric | DK53 (obsolete) | VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Doric | DK53 (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Dormakaba | TS93 (EN 1-5) G-EMF Door closer with integral electromechanical hold open including B or G types. Hold open to be connected to sensing device as per AS1905.1 5.6.3 and where appropriate to the building alarm system. | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Dormakaba | TS93 (EN 1-5) G-N standard slide rail including B or G types | SPS1-FR, SPS1-E | 29/02/2036 |
Closer - Surface Mounted Closers | Dormakaba | TS92 without hold open | F1.5, F0.5 | 01/01/2026 |
Closer - Surface Mounted Closers | Dormakaba | TS73 V-F (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Dormakaba | TS73 V-F (obsolete) | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Dormakaba | TS93, TS90, TS91, TS92,TS83 | TB60, TB30 | 29/02/2036 |
Closer - Surface Mounted Closers | Dormakaba | TS91 | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Dormakaba | TS93 (EN 1-5) G-SR-EMF including B or G types. EM hold open to be connected to sensing device as per AS1905.1 5.6.3 and where appropriate to the building alarm system. | SPS1-FR, SPS1-E | 29/02/2036 |
Closer - Surface Mounted Closers | Dormakaba | TS73 EMR | SPS1-FR, SPS1-E, Armashield-FR | 29/02/2036 |
Closer - Surface Mounted Closers | Dormakaba | TS71BC excluding hold open arm (obsolete) | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Closer - Surface Mounted Closers | Dormakaba | TS79 | VP30A, VP60A, VP30, VP30HR, VP60, VP60HR, VP90, VP120 | 01/01/2026 |
Page 1 of 17
