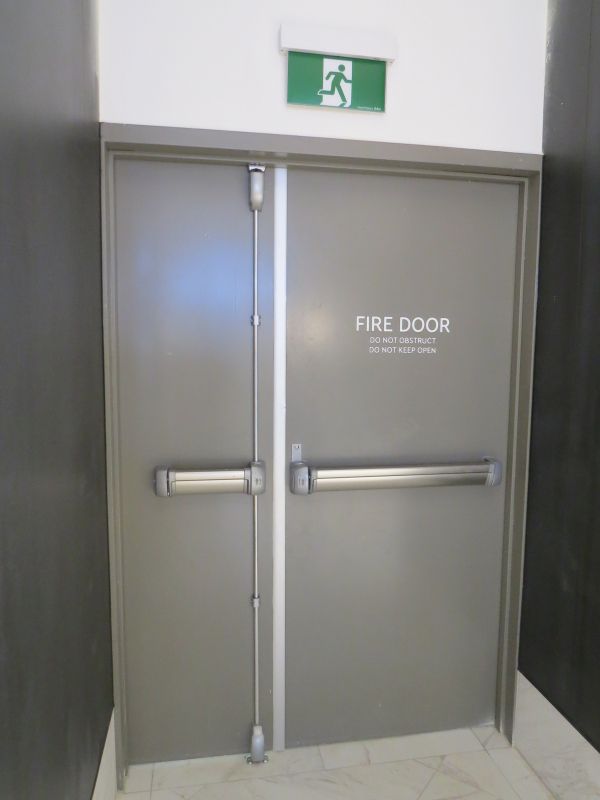

Pacific VP30A Standard Fire Door

Hinged

VP30A features a solid core and does not require any metal fixing plates or channels in the door leaf, making it an ideal choice for interior applications. Please note that it is not suitable for exterior use. The VP30a offers additional features and greater hardware options in comparison to the TB30.

Product features:

30 min fire rating
Single or pair
7 facing options
12 frame options
3 glass options
Compatible with timber, steel and masonry walls
Acoustic rating available
Ventilation grilles available
Meets NZS4520.2010 standard

Product Options

Leaf size

Timber-framed smoke control doors include a seal in the frame. Steel framed doors include the PFS-4 frame seal. If required, bottom seals can be selected from the Hardware list.

The thickness of the VP30A door leaf is 48mm with an approximate base leaf weight of 24kg/m2

Wall Type	Fire Resistance Rating Stability/Integrity/Insulation	Door Application	Max Leaf Height (mm)	Max Leaf Width (mm)
Timber Stud Wall Steel Stud Wall Masonry Wall	-/30/30sm	Single	2420	1020
		Single	2200	1120
		Pair	2420	1020
		Pair	2200	1120

Notes:

Please note that the maximum leaf width shown above is measured per door leaf.
The ‘sm’ above denotes that the door is available as a smoke control door set.
The maximum area per door leaf is 2.468m2 (Height x Width).
Minimum width for a fire door leaf is governed by the need to fit a compliant closer. Typically, 400 mm is the practical minimum.
Insulation ratings must be notified at time of pricing for steel frames.

Wall Types

Can be installed in masonry walls and timber stud drywalls of at least 30 minute fire resistance, and steel stud drywalls of at least 60 minute fire resistance.

Leaf Facings

MDF
Ply
Metal facings up to 1mm thick
High Pressure Laminate

Kydex
Timber veneers
Vinyl

Notes:

Of the above facings only those marked * may extend around the door edge.
Steel frames are required where metal capping is used.
Timber veneer requires FRR -/30/30 and is only available in timber frame or packed steel frame
Standard Paint Quality doors are allowed ‘non-clashed’ to provide best surface for finish painting.
Other facings may be available, please contact Pacific Doors to discuss further options.

Leaf Edges

The leaf edges listed below are available for the VP30A door set.

Paint quality doors are non-clashed as standard.

Notes:

Aluminium cappings are not available for timber frame doorsets.

Meeting Stiles

The meeting stiles listed below are applicable to paired door sets only.

Timber Frame

The timber frame profiles listed below are available for the VP30A door set.

The timber species of the frame must be a hardwood of minimum density 500kg/m3

Steel Frame

The steel frame profiles listed below are available for the VP30A door set.

The VP30A door set is available in the two-part steel frame system for fixing to walls already lined.

Notes:

D2 and D4 require minimum 110 mm wall thickness

Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. Timber sills are not available on fire doorsets. For more in depth information on frame profiles and sizes, please see our Installation Instructions.

Glazing Type	Maximum Glazed Area(mm)		Max Height (mm)	Max Width (mm)	Glazing Bead		FRR with Vision Panel
Glazing Type	Per VP	Total	Max Height (mm)	Max Width (mm)	Timber	Aluminum	Up to 0.065m2	Over 0.065m2
Pyrobel*	0.6m2	0.96m2	1630	950	√	√	-/30/30	-/30/30
Georgian Wired	0.1256m2	0.1256m2	850	870		√	-/30/30	-/30/-
Firelite	0.1256m2	0.1256m2	850	870		√	-/30/30	-/30/-

Notes:

Please note that the height and width of the vision panel must still fall within the maximum glazed area.
A maximum of two vision panels are permitted per leaf.
Glazing types marked with * indicate Grade A Safety glass.

For 30 minute door sets with larger vision panel options, please refer to the VP30

Standard Vision Panel Cross Sections

Timber Bead*	Aluminium Bead
Not Applicable for this door set

Product Optional Extras

Push or Kickplates

Push plates or kickplates can be of the below permitted materials and can be either surface mounted or recessed flush. Fixing may be via screws or contact adhesive only.

Steel (mild or Stainless)
Vinyl Sheets up to 2mm
Formica
Acrovyn
Korogard

Rubber kickplates can only be surface mounted – special conditions do apply, please contact us for more detail.

Ventilation Grilles

Lorient LVH intumescent grilles are available in the following sizes:

300 x 300 mm
450 x 450 mm
600 x 300 mm
600 x 600 mm

Please note that fire doors with ventilation grilles cannot be certified as ‘Smoke control' door sets.

Intumescent grilles are available to a maximum rating of -/30/30.

Two such Intumescent grilles may be fitted to each leaf separated from each other and hardware by at least 300mm (only one 600 x 600 mm grille allowed per leaf). Ventilation grilles are not suitable for exposed exterior doors.

V-GROOVES

V-grooves are not an option on this door type.

Bolection Moulds

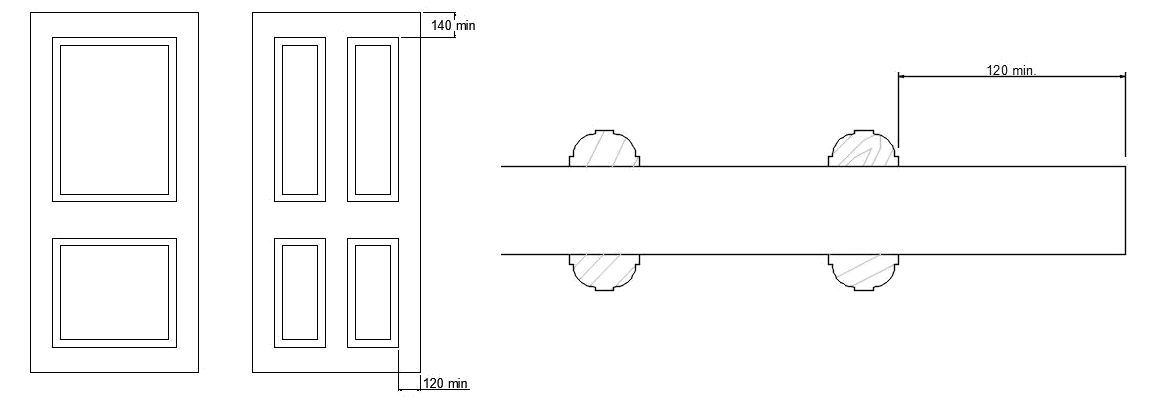

Bolection moulds must not extend to the edge of the leaf (120 mm minimum from side edges and 140 mm minimum from top edge). Care should be taken to ensure they don't clash with any door hardware or furniture.

Bolection moulds can be to one or both faces of a leaf.

Example patterns:
