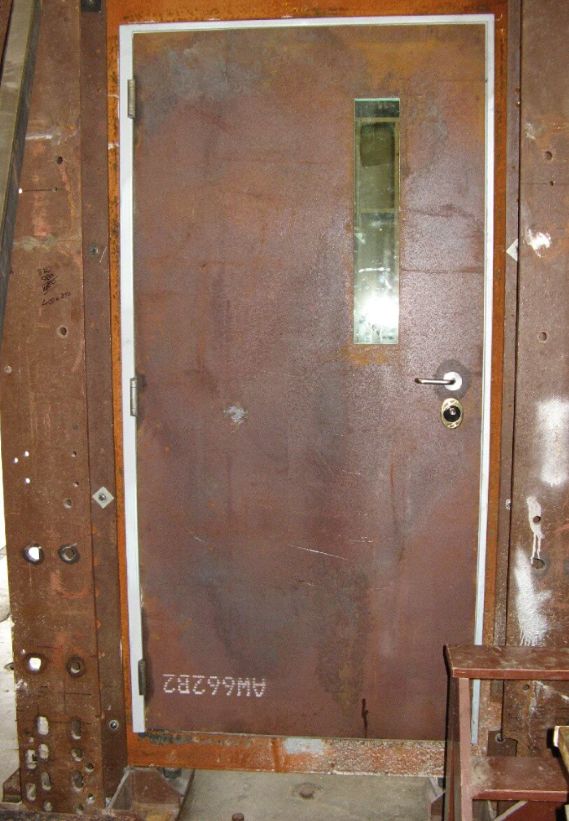

The Pacific Armashield-FR door set is an all-steel security door set, hung in a steel frame. The door set is designed for resistance to attack to the outside (hinge) face. Test results refer to a single leaf hinged door set.
Product features:
Upto 120min fire rating
Single leaf only
Suitable for both interior and exterior use
Compatible with masonry wall
Security tested to AS3555.1-1988 standard
Ballistic tested to AS/NZS 2343:1997
Meets NZS4520.2010 standard
Arm a Shield Fr
Cookie consent
This video is hosted by YouTube. By showing the external content you accept the terms and conditions of
www.youtube.com.
*Your choice will be saved in a cookie until you have closed your browser.
Product Options
The thickness of the Armashield-FR door leaf is 48mm with an approximate leaf weight of 80kg/m2
Wall Type
Fire Resistance Rating (FRR)
Door Application
Max Leaf Height (mm)
Max Leaf Width (mm)
Masonry
-/120/-
Single
2168
1021
Masonry
-/90/-
Single
2700
1200
Notes:
Sizes outside of this range are possible, but this will affect the fire rating of the door set.
Minimum width for a fire door leaf is governed by the need to fit a compliant closer. Typically, 400 mm is the practical minimum.
Wall Types
Installation of the fire-rated Armashield-FR requires a fully grouted steel frame in a masonry or precast concrete wall of the appropriate fire rating.
Leaf Facings
All steel leaf with attack face in 6mm steel. Non attack (inside) face is a removable light gauge steel panel (rivet fixed as standard).
Leaf Edges
The Armashield-FR has leaf edges edges as shown below.
Meeting Stile
This door set is not available as a pair.
Timber Frame
This door set is only available in a steel frame.
Steel Frame
The steel frame profiles listed below are available for the Armashield-FR door set.
Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. Timber sills are not available on fire doorsets. For more in depth information on frame profiles and sizes, please see our Installation Instructions.
Glazing Type
Maximum Glazed Area
Max Height (mm)
Max Width (mm)
Steel Glazing Bead
FRR with Vision Panel
Per VP
Total
Up to 0.065m2
Over 0.065m2
Firelam (2)
0.091m2
0.091m2
700
130
√
-/120/-
-/120/-
Pyran S (2)
1.08m2
2.16m2
1200
900
√
-/90/-
-/90/-
NOVOLAY Secure BR4 NS / 1.5.4 (4)
0.42m2
0.84m2
700
600
√
-/60/-
-/60/-
Notes:
Please note that the height and width of the vision panel must still fall within the maximum glazed area.
This glazing is fire glazing, not security glazing. For apertures more than 200 mm wide we recommend steel bars for security
Blast, Attack and Ballistic ratings may be affected if the door has a vision panel.
Mass of door leaf not to exceed 44 kg / hinge
The standard glazing system provides a flush attack face and steel beading with fixings on the “non-attack” face. The system is adaptable to various thicknesses of security glazing according to requirements.
Standard Vision Panel Cross Sections
Steel Bead
Rating
Standard
Description
Burglar Resistance
Level 4
AS3555-1988
10 minute attack with a range of hand tools and power tools
Fire Resistance
FRR -/120/-
AS1530.4
Bullet Resistance
G2
AS/NZS 2343
.44 Magnum
S0
AS/NZS 2343
Shotgun 12 gauge, 32 SG Shot
Test results apply to a single door only, with the specification and hardware described.
A version of the Armashield-FR is available tested to R2 rating.
Security Testing
A hinged Armashield-FR door set with Surelock McGill D4 three point locking was subjected to a Level 4 attack according to AS3555-1988 "Building Elements - Testing and Rating for Intruder Resistance".
Two men attacked the door set with common hand & power tools and succeeded in removing the door leaf from its frame (thus forming an opening in the door set) after 27 minutes 30 seconds.
Ballistic Testing
The standard Armashield-FR door set has been successfully tested to AS/NZS 2343:1997 “Bullet resistant panels and elements” with ratings of:
G2 .44 Magnum
S0 Shotgun 12 gauge 32g SG shot
A version of the Armashield-FR is available tested to R2 rating.
Ballistic rated door sets require either a fully-grouted frame installation to masonry or concrete walls, or else ballistic protection built into the frame during manufacture. Matching Ballistic Wall Panels are described in a separate section.
Thermal Insulation
This door leaf has a thermal insulation rating (R-value) of 0.029 Km2/W.
The fire-rated Armashield-FR door set may be fitted with a range of security hardware:
- locksets with steel or brass latching components for FRR -/60/- - locksets with only steel latching components for FRR -/120/- - any closers, pull handles and minor items of hardware provided they are non-combustible and fixed with steel fasteners.
Note that fitting of deadlocks and other non-self-latching hardware will make the door set non-compliant in respect to the standard NZS 4520 Fire-resistant door sets.
