Pacific 6ST High Security Door

Burglar | Fire | Bullet | Explosion

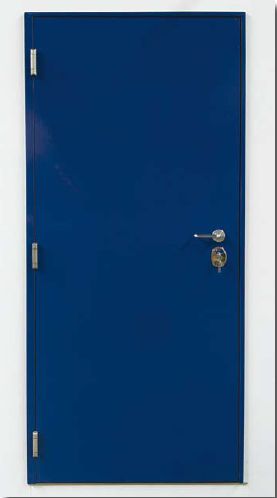

The Pacific 6ST is a high level security door set with tested resistance to forced entry, ballistic, blast, and fire threats. The side hung single leaf steel door is fitted with a Mottura multiple bolt locking system. The door leaf is hung on fully mortised institutional hinges in a steel frame. The Pacific 6ST is suitable for applications where very high levels of security are required.

Product features:

Single leaf only
120min fire rating
Multipoint locking system
Suitable for both interior and sheltered exterior use
Compatible with timber stud and masonry wall
Security tested to ENV 1627-30:1999 standard
Ballistic tested to AS/NZS 2343:1997 standard
Explosive Blast tested to EN 13124:2004 standard
NZS4520.2010 standard

Typical applications:

Remote secure stations
Armouries
Store rooms with high value or sensitive material

Product Options

The door set is intended for interior use. The hinge face of the door is the designated attack face.

	Rating	Standard	Description
Burglar Resistance	Class 6	ENV 1627	20 minute attack with a range of hand tools and power tools
Fire Resistance	FRR -/120/-	AS1530.4
Bullet Resistance	R2	AS/NZS 2343	NATO 7.62mm 9.3g FMJ Bullet
Bullet Resistance	R1	AS/NZS 2343	M193 5.56mm, 3.6g FMJ bullet
Bullet Resistance	S1	AS/NZS 2343	12 Gauge Shotgun, 28.35g single slug
Explosion Resistance	EXR 4	EN13124	12kg TNT at 4 metres

Test results apply to a single door only, with the specification and hardware described. The hinge face of the door is the designated attack face.

The thickness of the 6ST door leaf is 62mm with an approximate leaf weight of 125kg/m2

Wall Type	Fire Resistance Rating (FRR)	Door Application	Max Leaf Height (mm)	Max Leaf Width (mm)
Masonry	-/120/-	Single	2318	1107

Notes:

This door set has a minimum size of 1686h x 806w.

Wall Types

The complete specification with resistance to burglary, fire, bullets and explosion requires an installation into masonry wall with a fully grouted frame. Alternative installations where lesser specifications are required can be discussed with Pacific Door Systems Ltd.

The tested and certified door set can only be fitted with specific Mottura multipoint locking hardware. Any additional hardware required must be specified in detail at the time of ordering so that correct preparation of the steel door leaf and frame can be made. This includes any door furniture or items which may be screw-fixed to or through the outside face.

Closer

Surface-mounted closers mounted on the inside face are recommended.

Hinges

The leaf is hung on three fully mortised 4½” x 4½” stainless steel institutional hinges.

Mottura multipoint locking system

A Mottura 85.371 lock case is internally mounted in the leaf. The lock case has four locking bolts plus a latch bolt and it also controls an additional four locking bolts, two vertical and two horizontal. All locking points are reinforced for maximum security. A handle operates the latch bolt only, while the key operates the horizontal and vertical lock bolts.

The lock cylinder is protected by a Mottura “Defender” protective cover. The lock can be fitted with any double sided europrofile cylinder. The use of an Abloy “Protec” cylinder or similar is recommended for maximum security. If a single sided europrofile cylinder is to be used it must be advised at the time of ordering.

Note that fitting of deadlocks and other non-self-latching hardware will make the door set non-compliant in respect to the standard NZS 4520 Fire-resistant door sets.

Timber Frame

This door set is only available in a steel frame.

Steel Frame

The leaf is hung in a frame of 2.0 mm folded steel.

The fire resistance rating only applies to a door set installed in a masonry or concrete wall with a fully grouted frame. Bullet resistance rating requires the frame to be fully grouted or else to include ballistic protection in the frame.

Standard frames are three-sided only with no sill. Four-sided frames and/or custom sills may be available on request. For more in depth information on frame profiles and sizes, please see our Installation Instructions.

Security Testing

The door set is rated to level 6 of the European ENV 1627-30:1999 “Windows, doors, shutters – Burglar resistance” which is the highest level of the standard. The testing incorporates a static load test with applied loads of up to 1500 kg as well as manual attack for 20 minutes with a range of hand tools and power tools.

Ballistic Testing

The 6ST door set has been successfully tested to AS/NZS 2343:1997 “Bullet-resistant panels and elements” with ratings of R2, R1, and S1. R2 is the most severe rating in the standard.

R2 7.62mm calibre rifle
R1 5.56mm calibre rifle
S1 Shotgun 12 gauge 28g single slug

Explosive Blast Testing

The Pacific 6ST is tested to level EXR 4 of EN 13124:2004 “Windows, doors and shutters – Explosion resistance”.

An explosive charge of 12 kg TNT was detonated 4 metres away from the door.

Thermal Insulation

This door leaf has a thermal insulation rating (R-value) of 0.615 Km2/W.
