Pacific SPS1-FR Custodial Fire Door

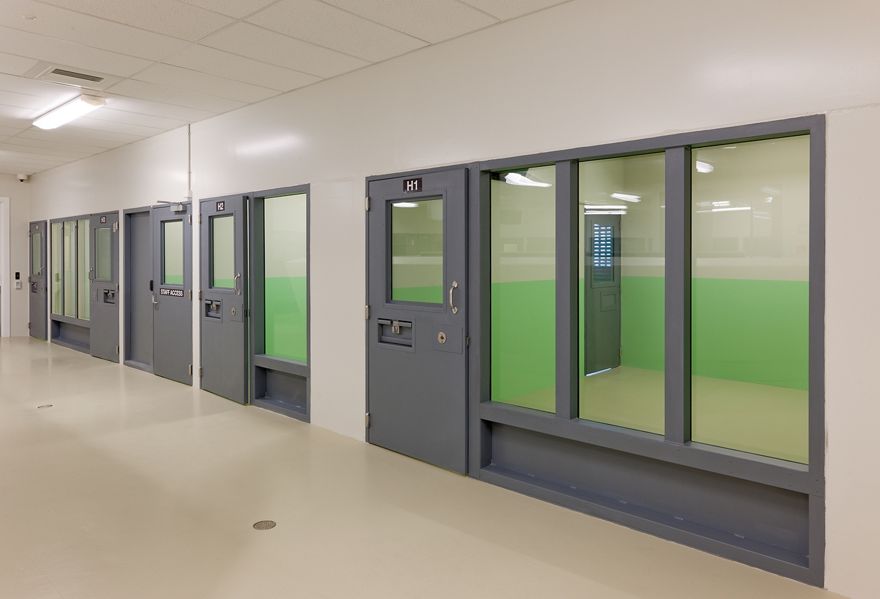

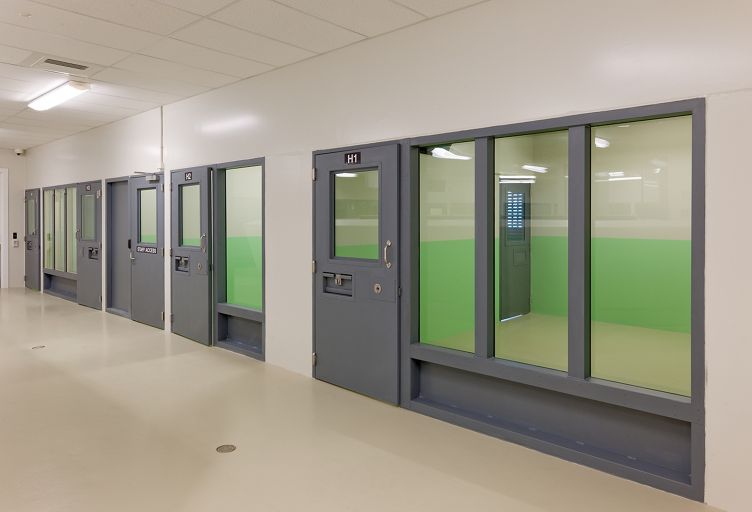

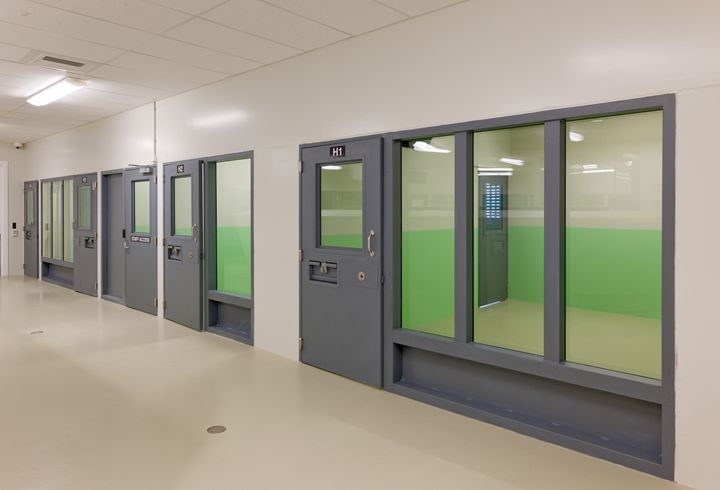

The Pacific SPS1-FR door set is a detention or commercial security fire door, resistant to physical attack using hand tools, levers and heavy impacts from either face. The door leaf is a solid core panel, fully encapsulated in steel sheet with seam-welded edges, hung in a steel frame.

Most common applications include:

• Prison Fire Door
• Police Station Cell Door
• Commercial Security Fire door
• Stairwell door in multi-level buildings

The door set is suitable for both interior and sheltered exterior use.

The thickness of the SPS1-FR door leaf is 50mm with an approximate leaf weight of 59kg/m2

Notes:

1. Please note that the maximum leaf width shown above is measured per door leaf.
2. The ‘sm’ above denotes that the door is available as a smoke control door set.
3. Minimum width for a fire door leaf is governed by the need to fit a compliant closer. Typically, 400 mm is the practical minimum.

Wall Types

The SPS1 fire rated door set can be installed into concrete and masonry walls, timber stud walls, or walls including RHS steel posts.

The tested timber stud wall is a Gib^® GBT 60a wall and optionally may include a 2mm steel sheet lining for additional security.

For details of RHS post walls contact Pacific Door Systems Ltd.

Notes:

1. Please note that the height and width of the vision panel must still fall within the maximum glazed area.
2. This glazing is fire glazing, not security glazing. For apertures more than 200 mm wide we recommend steel bars for security
3. Ballistic ratings not valid when vision panels are present.
4. Mass of door leaf not to exceed 36 kg / hinge

Standard Vision Panel Cross Sections

Steel Bead
