Pacific FW60-P Fire Window -/60/60

Window Size

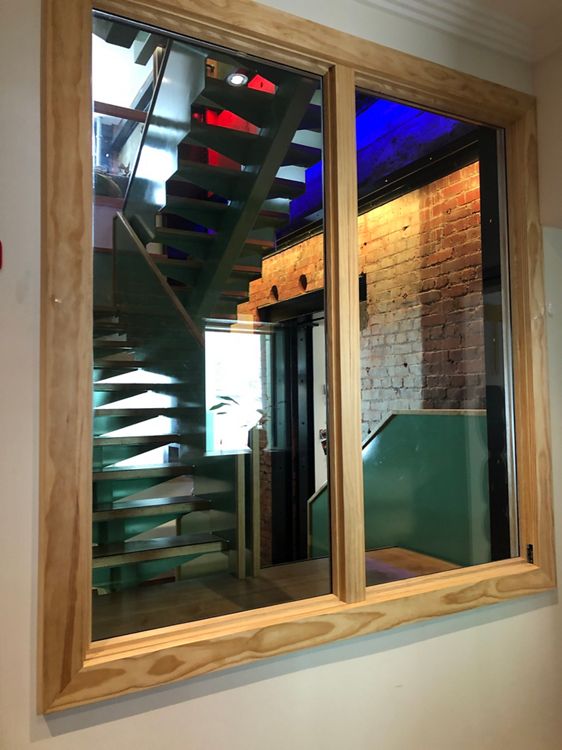

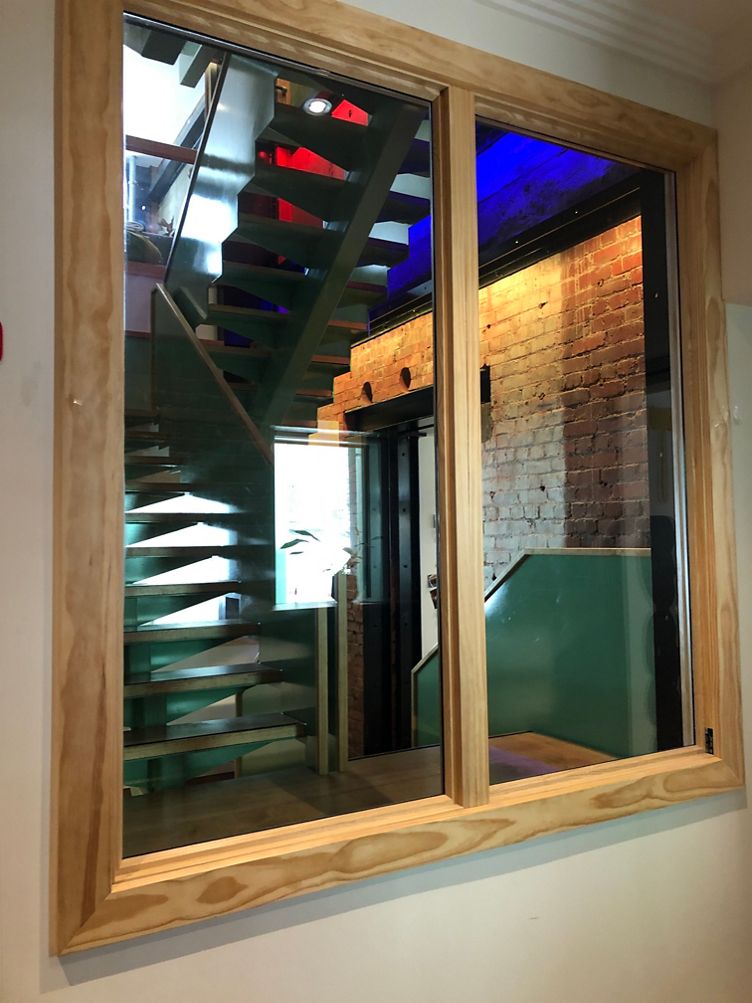

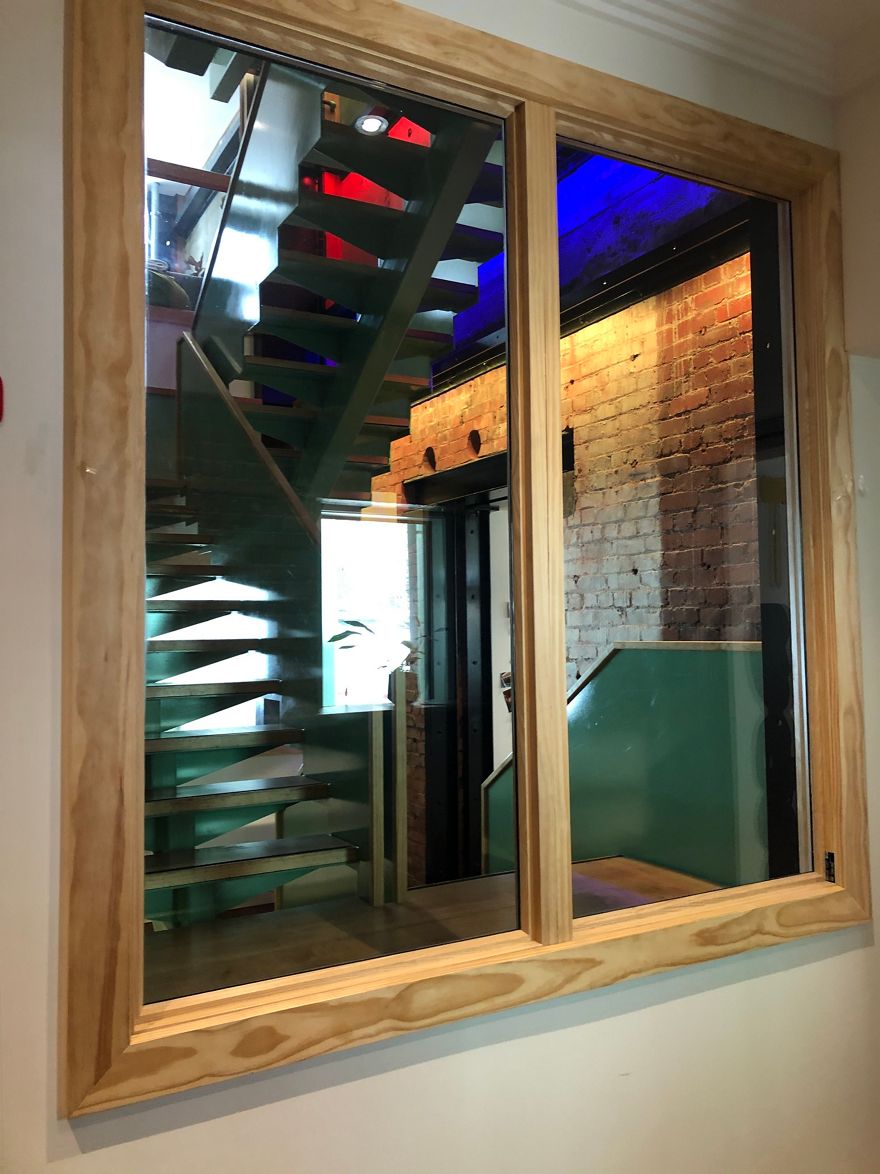

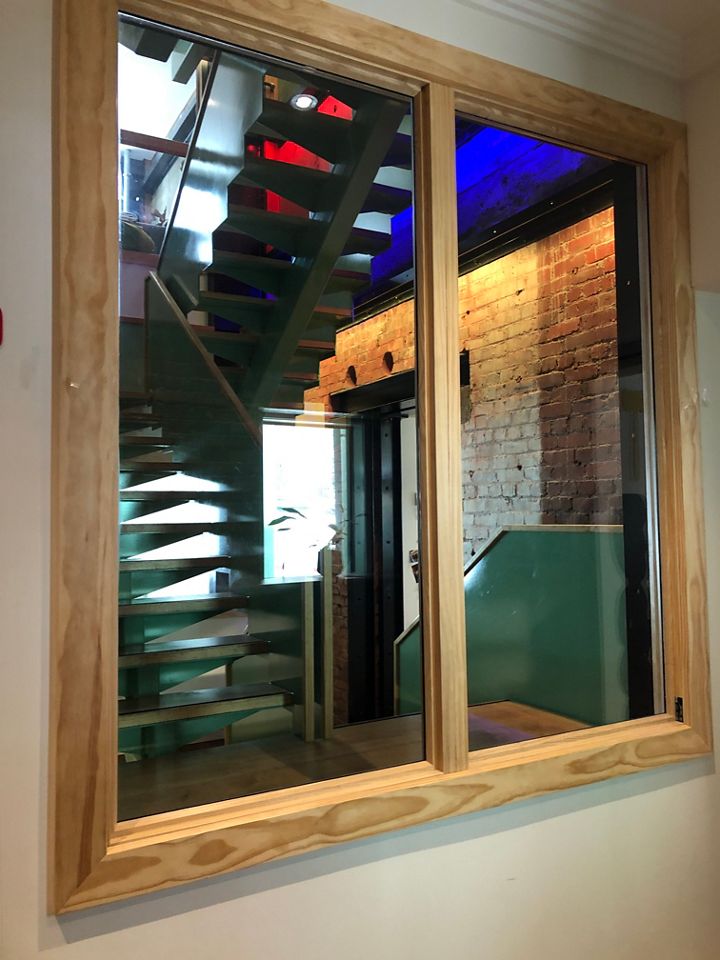

The Pacific FW60 Fire Window is a glazing system with insulating glass which allows large sized glazing and timber detailing.

The glazing is a fire window system which is fire resisting glazing as defined in the NZ Building Code Acceptable Solutions C/AS2 to C/AS6.

Pacific Fire Windows are approved for installation into vertical walls only. We do not currently have approvals for skylights or horizontal glazing.

Notes:

1. Sizes noted above are the clear view.
2. Pyrobel glazed windows can be connected as a sidelight to the VP30/VP60 doorset. Pyranova glazed windows can be connected as a sidelight to the TB60 doorset.
3. Glazing types marked with * indicate Grade A Safety glass.

Wall Types

Jambs may be connected to timber stud, steel stud or concrete masonry. The minimum specification for each wall type is:

• Precast concrete (100mm thickness) or grouted blockwork (190mm thickness).
• Non-load bearing timber stud partitions of minimum specifications GBT60a or GBT60b. Note that steel framed VP60 door sets may only be installed in walls of minimum stud size 100x50mm nominal (Gib^® Fire Rated Systems 1997).
• Non-load bearing steel stud partitions of minimum specification GBS90 (timber framed doors) or GBS60 (Steel framed doors) (Gib^® Fire Rated Systems 1997).
