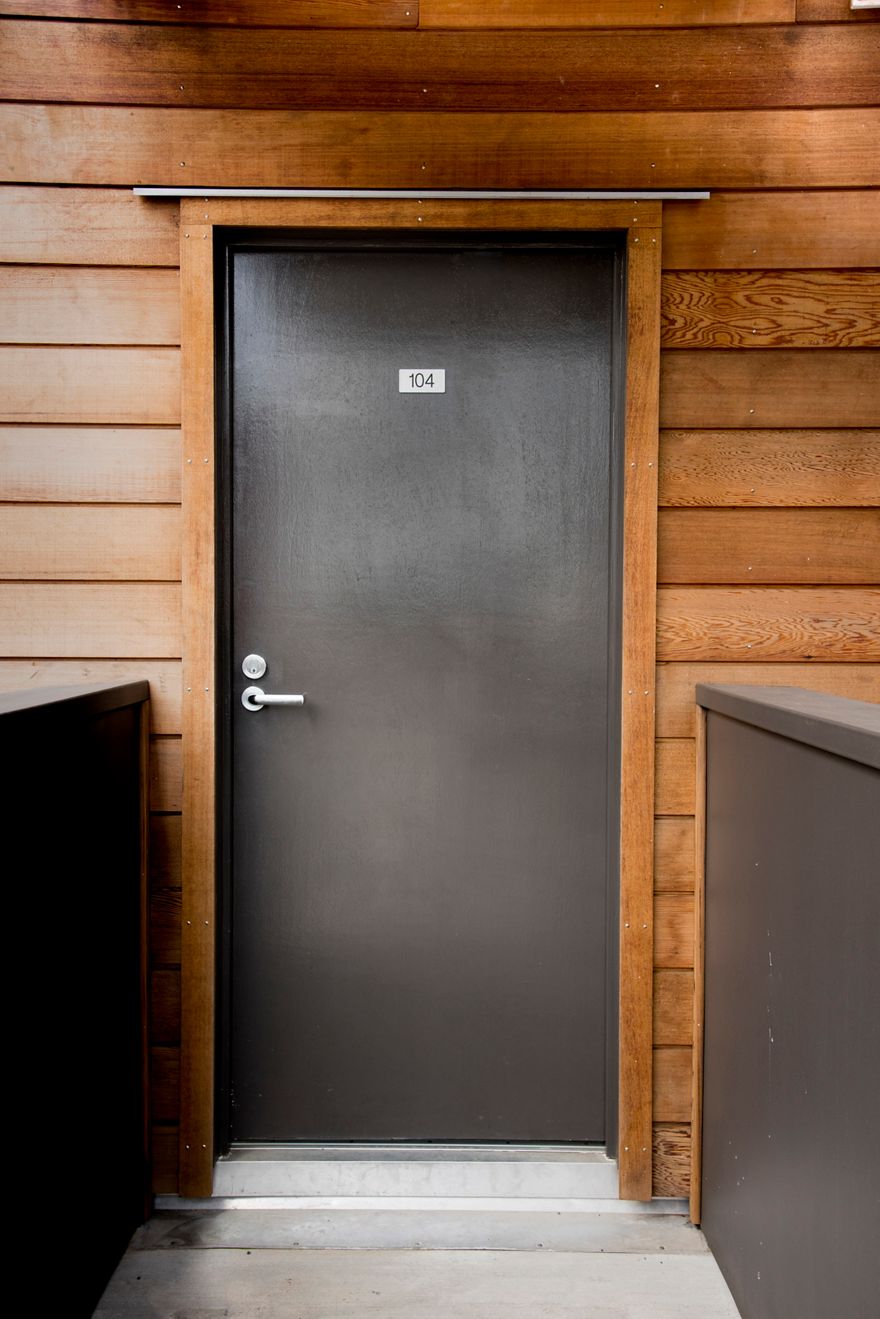

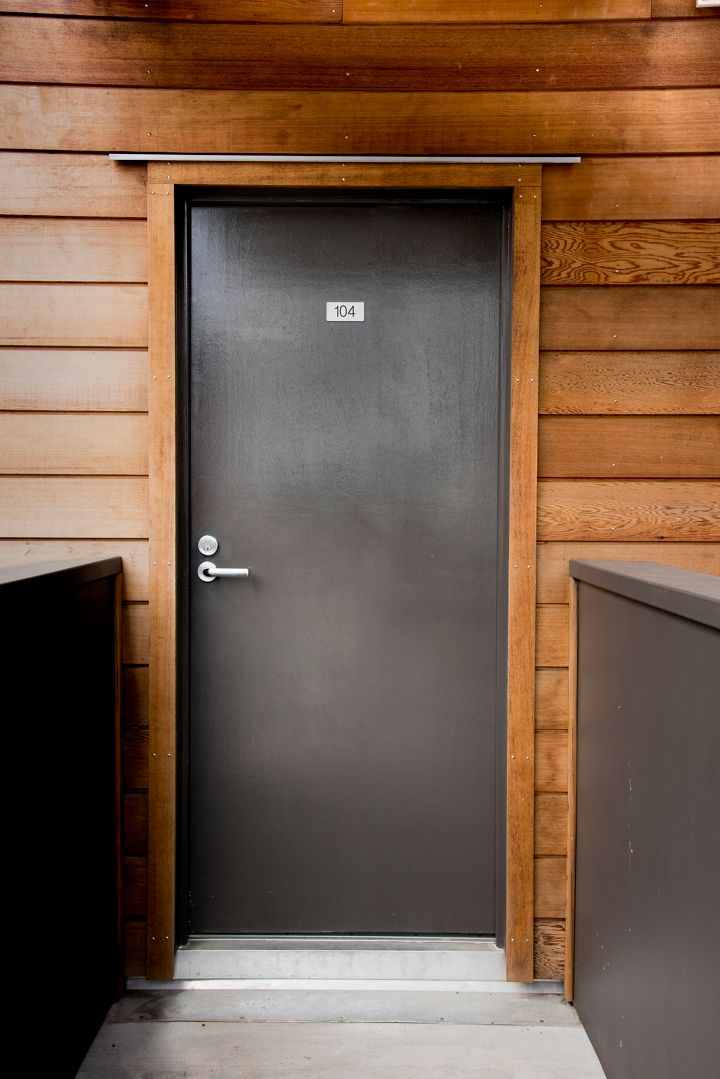

Pacific XT60 Exterior Fire Door

Leaf Size

    Timber-framed smoke control doors include a seal in the frame. If required, bottom seals can be selected from the Hardware list.

    The thickness of the XT60 door leaf is 54mm with an approximate leaf weight of 24kg/m2

Notes:

1.    The ‘sm’ above denotes that the door is available as a smoke control door set.

Wall Types

    The XT60 can be installed in timber stud plasterboard walls only.

Notes:

• Circular vision panels are not available.
• The height and width of the vision panel/s must still fall within the maximum glazed area.
• Vision panel only approved for 54mm Pacific XT60 exterior fire door.

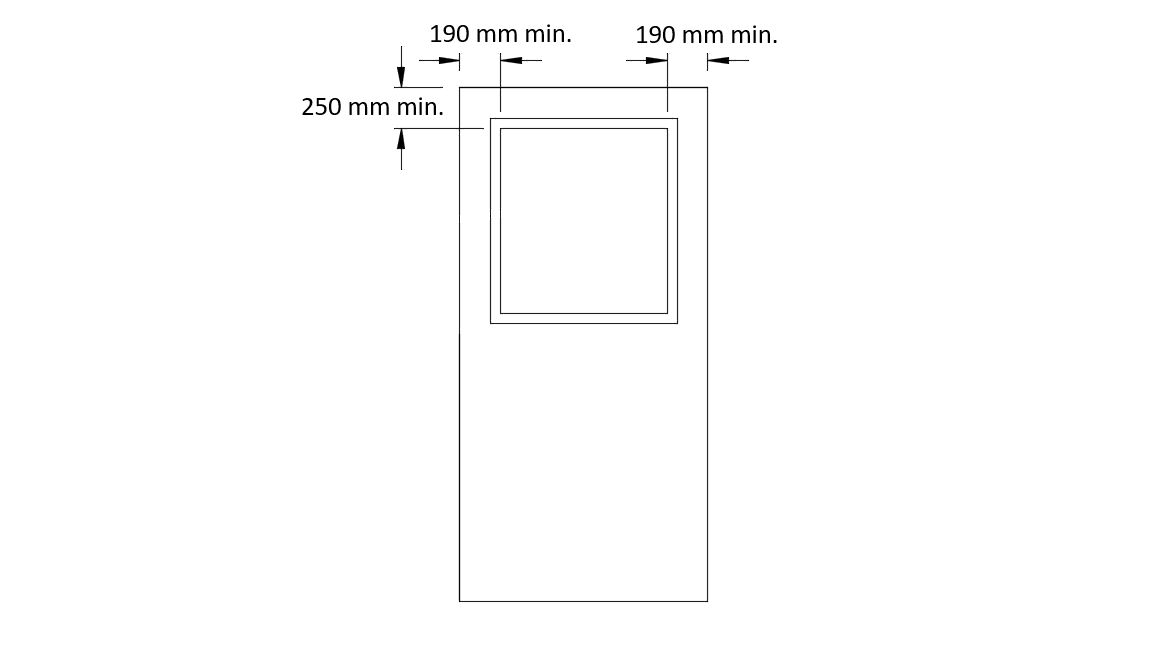

• The distance between the vision panel cutout and any item of hardware shall be at least 60 mm.

Pyro 27 mm fire glass is used for all options. In exterior applications Pyro 23 is replaced with Pyro 27 as an extra layer of UV shielding is added to one side, size limitations remain the same. For this reason the exterior face of the door needs to be noted when detailing

Glazing details

Standard Vision Panel Cross Sections

Timber Bead	Aluminium Bead
	Not Applicable for this door set

Note:

1)   Only available in Grarapa hardwood, bevelled bead.
