Pacific Double Glazed Timber Framed Acoustic Windows SPA48-AW

Pacific Acoustic Windows are glazing units designed and tested for sound attenuation to a range of STC ratings. The units are all timber framed with fixed glazing, for interior use.

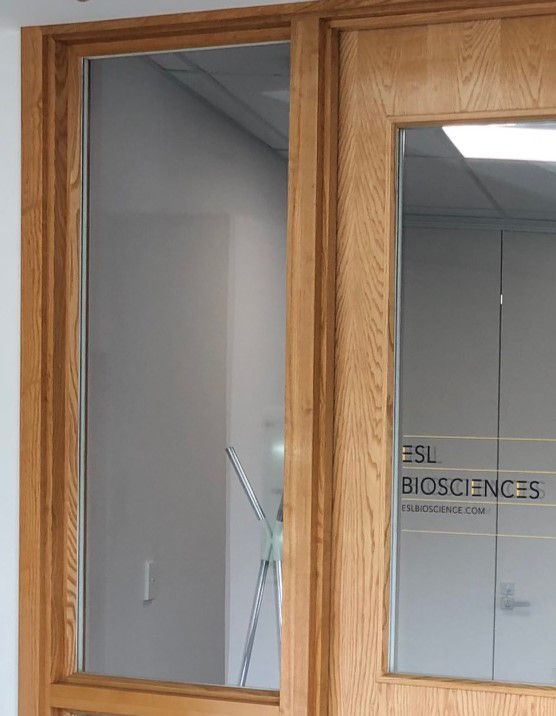

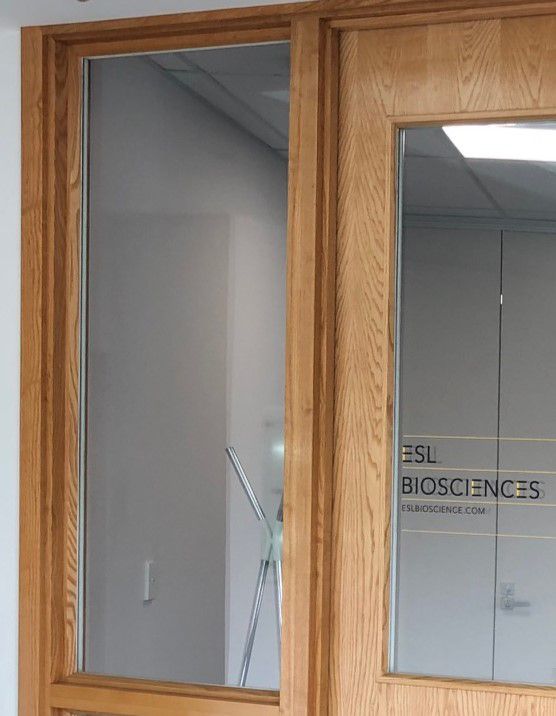

Image: SPA48-AW
SPA48-AW

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

The SPA48-AW is a double glazed unit.

Window Type Max Glazed Area   Clear View Overall Frame  Frame Type  STC Rating
Minimum (mm) Maximum (mm) Minimum (mm) Maximum (mm) Timber Steel
SPA48-AW 4.9 m2 Height  318 3568 442 3692 √ - 48
Width 148 2368 272 2492 √ - 48





Sizing Rules

The tested size for this window is 1993 mm H x 1084 mm W overall frame size. Acoustic performance may vary for extremely large or small units.



Frame Types & Profiles

Timber Frame

This window is available in the below frame profiles.

Standard jamb thicknesses are 30mm and 42mm. For more in depth information on frame profiles and sizes, please see our Installation Instructions.

Steel Frame

These units are not available in a steel frame.

Wall Types

  • Masonry or Gib® Systems.

The entire assembly including wall, frame and window glazing is the tested unit.



  • BPIR - Acoustic windows - V02(PDF, 110 KB)

Click here to see the installation instruction
