Pacific Single Glazed Timber Framed Acoustic Windows SPA35-AW

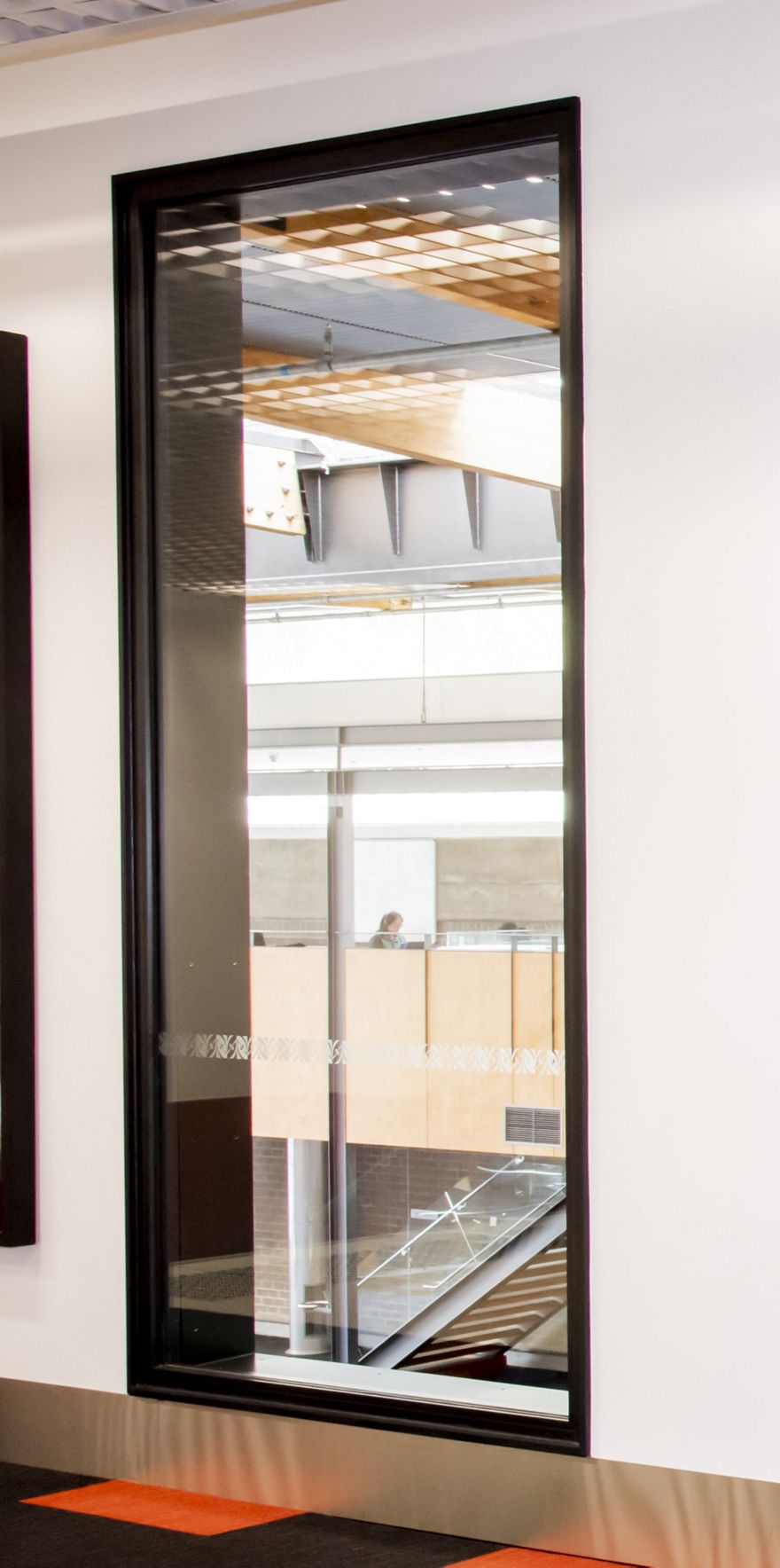

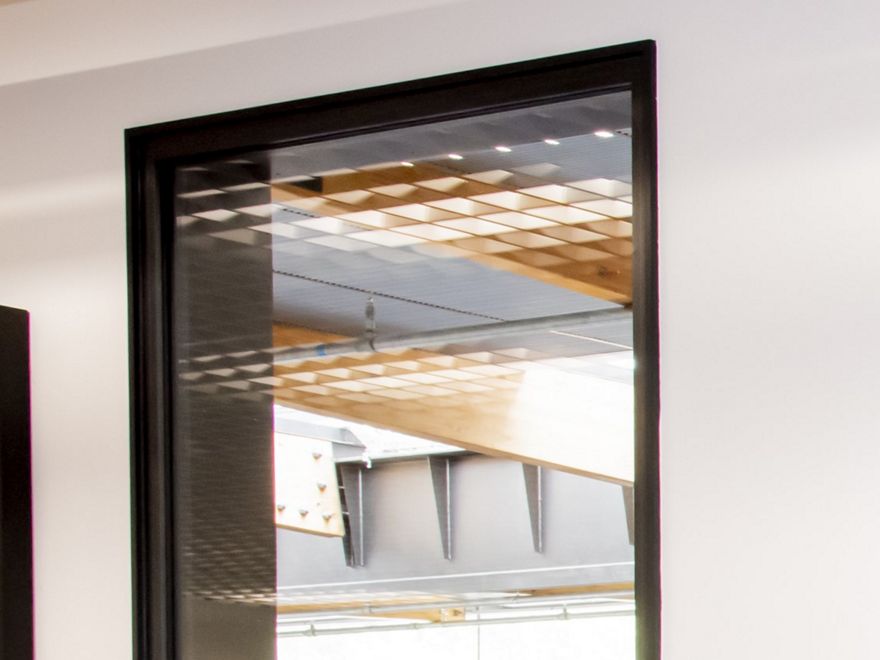

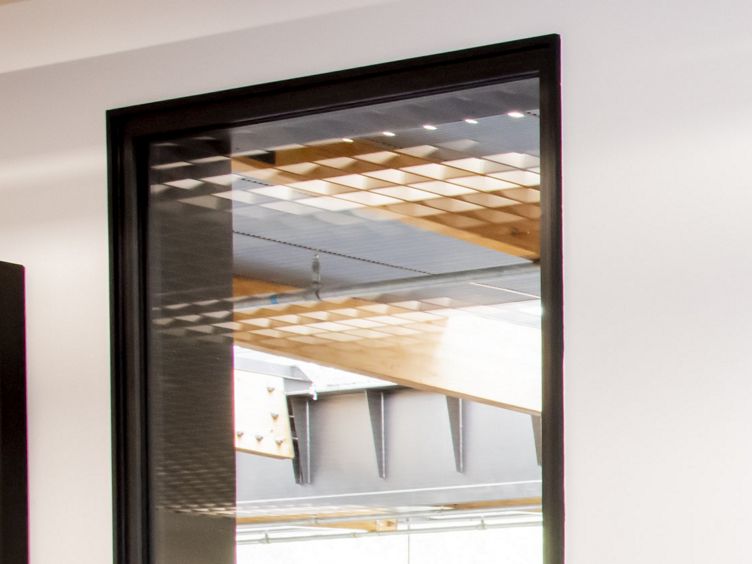

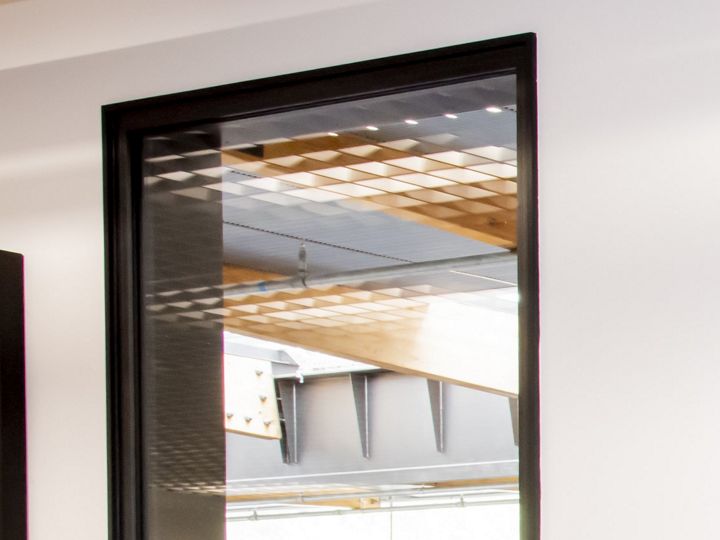

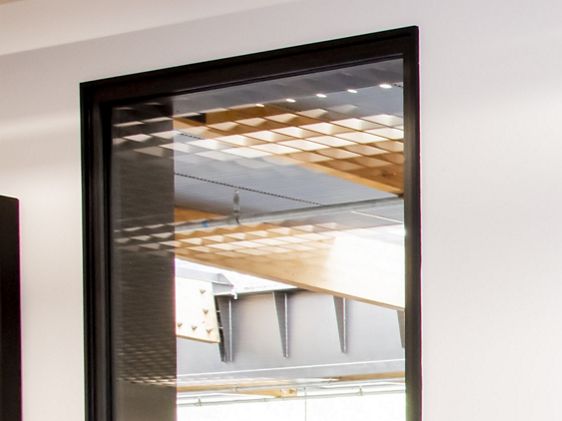

Pacific Acoustic Windows are glazing units designed and tested for sound attenuation to a range of STC ratings. The units are all timber framed with fixed glazing, for interior use.

Pacific Single Glazed Acoustic Windows SPA35-AW

Single glazed units are supplied fully glazed in ready-to-install mode. Large units may require site glazing.

Window Type	Max Glazed Area		Clear View		Overall Frame		Frame Type		STC Rating
Window Type	Max Glazed Area		Minimum (mm)	Maximum (mm)	Minimum (mm)	Maximum (mm)	Timber	Steel	STC Rating
SPA35-AW	4.9 m2	Height	350	3000	478	3128	√	-	35
SPA35-AW	4.9 m2	Width	150	2500	278	2628	√	-	35

Sizing Rules

The tested clear view size for this window is 1510 mm H x 810 mm W. Acoustic performance may vary for extremely large or small units.

Frame Types & Profiles

Timber Frame

This window is available in the below frame profile.

Standard jamb thicknesses are 30mm and 42mm. For more in depth information on frame profiles and sizes, please see our Installation Instructions.

Steel Frame

These units are not available in a steel frame.

Wall Types

Masonry or Gib^® Systems.

The entire assembly including wall, frame and window glazing is the tested unit.
