Window Size
The thickness of the window frame is 50 mm with an approximate glazed weight of 78 kg/m2
Pacific Fire Windows are approved for installation into vertical walls only. We do not currently have approvals for skylights or horizontal glazing.
| Glazing Type | Maximum Glazed Area | Max Height (mm) | Max Width (mm) | Frame Type | | Fire Rating |
| Timber | Steel |
| Pyran S, 5 mm | 1.97 m2 | 1676 | 1176 | | √ | -/60/- |
| Pyran S, 6 mm | 2.56 m2 | 2176 | 1176 | | √ | -/60/- |
| Pyrobel 16 | 3.68 m2 | 2676 | 1376 | | √ | -/60/- |
Notes:
- Sizes noted above are the clear view.
- All glazing is Grade A safety glass
- Minimum clear view size for Pyran S glazing is 326 x 226 mm
Size restrictions, Pyrobel glazing:
Size restrictions, Pyran S 6 mm glazing:
Size restrictions, Pyran S 5 mm glazing:

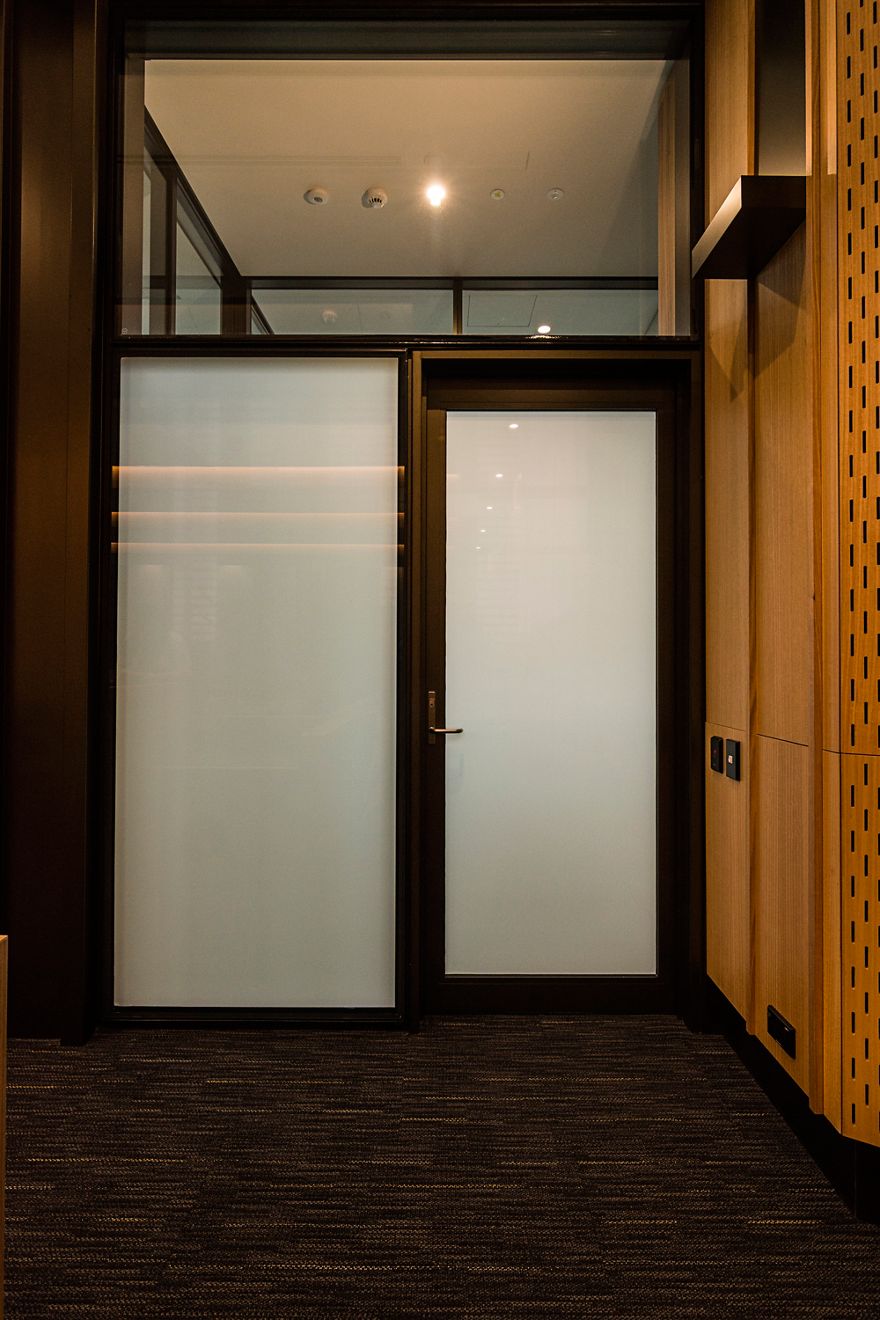

Sizing Rules
The maximum allowed clear view is 2676 mm High x 1376 mm Wide using Pyrobel 16 glazing. One additional vertical pane can be added with a clear view of max. 266h (216h if exterior). Multiple panes may be joined horizontally by mullions.
A maximum overall window height of 3582mm is possible using two vertical panes of Pyran S glazing divided by a transom.
Wall Types
The Pacific Steel Fire Window -/60/- is suitable for installation in timber or steel stud plasterboard walls and masonry fire rated walls. Walls to be fire rated to minimum -/60/- by others.
The standard installation method for steel or timber stud walls is by 12g screws at max. 450 mm centres.
The standard for Masonry installation is M8 Excalibur screwbolts (or similar) at max. 450 mm centres. No fasteners are exposed to weather or attack face.
Finish
Standard preparation for interior use is powder coating.
Standard preparation for exterior use is sandblasting followed by zinc arc spray (15 year weatherability grade) to frame.
Unit can be delivered with a powder coat finish or primed ready to paint.
