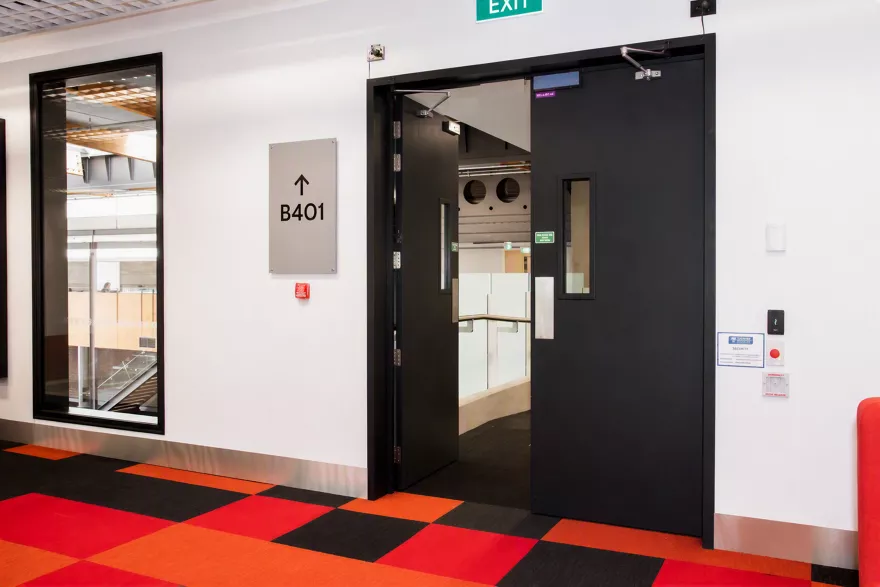

Pacific TB60 Economy Fire Door

The TB60 fire door set is ideal for interior use and comes with a timber frame. It is the most economical option among our product lines, yet it does not compromise on quality or fire safety standards

Product features:

  •  60min fire rating
  •  Single or pair
  • 4 facing options
  • 3 frame options
  • 2 glass options
  • Compatible with timber stud, steel stud, and masonry walls
  • Ventilation grilles available
  • Meets NZS4520.2010 standard
FRR 60 Minute TriboardFRR 60 Minute Triboard

Product Options

  • Timber-framed smoke control doors include a seal in the frame. If required, bottom seals can be selected from the Hardware list.

    The thickness of the TB60 door leaf is 55mm with an approximate leaf weight of 35.2kg/m2

     Wall TypeJamb TypeFire Resistance Rating
    Stability/Integrity/Insulation    		Door ApplicationMax Leaf
    Height (mm)    		Max Leaf
    Width (mm)

    Timber Stud Wall

    Steel Stud Wall

    Masonry Wall

    		Timber-/60/60smSingle24001200
    Pair2200938 *(1),(2)

    Notes:

    1. Minimum width for pair doorset is 380mm.
    2. For pair door, any leaf larger than 592mm must be fitted with thermal bolt.
    3. The ‘sm’ above denotes that the door is available as a smoke control door set.

    Wall Types

    The TB60 can be installed in masonry walls and timber stud and steel stud drywalls of at least 60 minute fire resistance. Timber studs should be minimum 90 x 45 mm. Steel stud walls should be min. 92 mm with BMT of at least 0.75 mm and reinforced with timber stud around the door opening.

    If installed in a 30-minute fire wall, the fire resistance of the doorset will be limited to 30 minutes.

  • Leaf Facings

    • MDF
    • Ply
    • Timber veneers
    • High pressure laminate
      up to 1.5mm thick (e.g. Laminex, Formica)

    Notes:

    1. Other facings may be available, please contact Pacific Doors to discuss further options.

    Leaf Edge

    The leaf edges listed below are available for the TB60 door set



    • 7 mm hardwood clashing to leading edge (Singles)
    • 18 mm hardwood clashing to lead edge (Rebated pairs)

    Meeting Stiles

    *Rebated and flush

  • Timber Frame

    The timber frame profiles listed below are available for the TB60 door set.

    Timber density requirements exclude some species of timber. Timber must be a hardwood with minimum density of 600kg/m3.

    LVL frames can be used with a reduction in fire rating to -/30/30.







    Steel Frame

    This door set is only available in a timber frame.

    Standard frames are three-sided only with no sill. Timber sills are not available on fire doorsets. For more in depth information on frame profiles and sizes, please see our Installation Instructions.

  • Glazing Type Maximum Glazed Area(mm) Max Height (mm) Max Width (mm) Glazing Bead FRR with Vision Panel
    Timber Aluminum Up to 0.065m2
    Pyranova 60 S3.0 (Pyro 23mm) 0.66 1100 600 √   -/60/60
    Pyranova 30 S3.0 (Pyro 15mm) 0.33 815 400 √   -/60/30

    Notes:

    1. Up to two vision panels allowed in a single leaf (only when using Pyro23 glass). Please refer to the details below for limitations around two vision panels.
    2. Circular vision panels are not available.
    3. The height and width of the vision panel/s must still fall within the maximum glazed area.
    4. Vision panel only approved for 55mm Triboard.
    5. The distance between the vision panel cutout and any item of hardware shall be at least 60 mm.





    Standard Vision Panel Cross Sections

    Timber Bead Aluminium Bead
    Not Applicable for this door set

  • Acoustical performance

    An acoustic rating of STC 34  is available for this doorset..

  • BPIR -TB-series Fire Doors(PDF, 115 KB)
    FC18404-01-C1-2 PDS 55mm UF doorset(PDF, 147 KB)

Product Optional Extras

  • Ventilation Grilles

    Lorient LVH intumescent grilles are available in the following sizes:

    • 450 x 450 mm

    Please note that fire doors with ventilation grilles cannot be certified as ‘Smoke control' door sets.

    Intumescent grilles are available to a maximum rating of -/60/30.

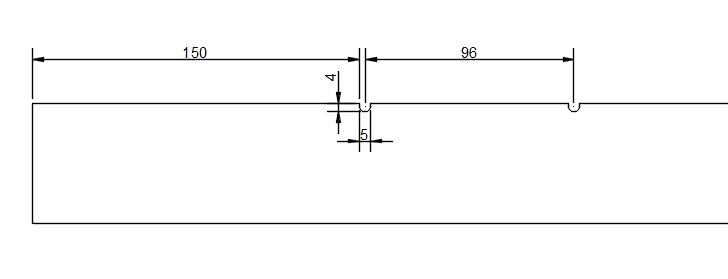

    U-GROOVES

    U-grooves can be machined into the leaf facings for aesthetic purposes.

    Grooves can be a maximum of 5 mm wide by 4 mm deep, with a minimum edge distance of 150 mm.



  • Overpanels are not applicable for this door set. Please refer to the VP60 datasheet.

  • Sidelight

    A Pyranova glazed FW60 fire window can be connected to the TB60 as a sidelight. Please see the respective window datasheets for limitations.



    Overlight

    Overlights are not applicable for this door set. Please refer to the VP60 datasheet.
