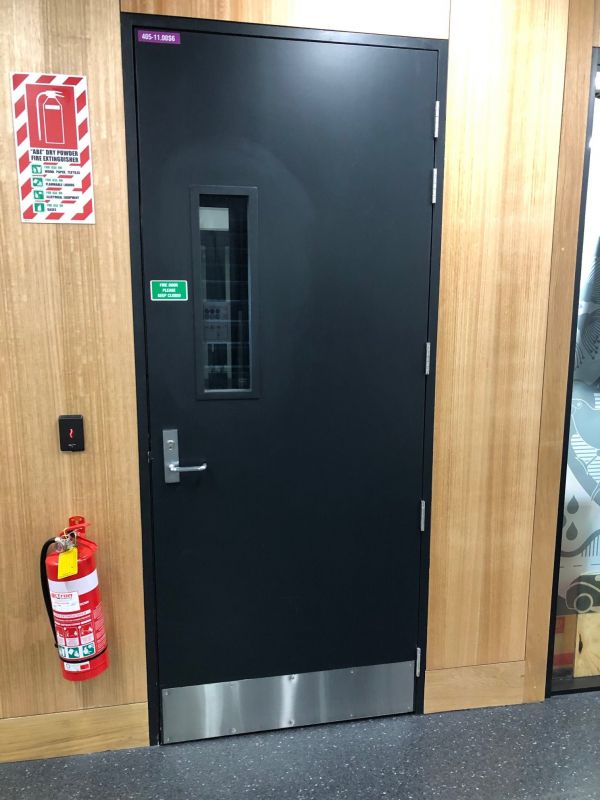

Pacific TB30 Economy Fire Door

Leaf Size

Timber-framed smoke control doors include a seal in the frame. If required, bottom seals can be selected from the Hardware list.

The thickness of the TB30 door leaf is 45mm (*3) with an approximate leaf weight of 22.88kg/m2.

The Maximum allowed leaf size for the TB30 is given by a straight line passing through the following two points:

Notes:

1)  Minimum width for pair doorset is 380mm.

2) For pair door, any leaf larger than 592mm must be fitted with thermal bolt.

3) Vision panel and sidlight only allow in 55mm thick door with an approximate leaf weight of 35.2kg/m2.

4) The ‘sm’ above denotes that the door is available as a smoke control door set.

5) Please see the below graph for clarity.

Wall Types

The TB30 can be installed in masonry walls, timber stud and steel stud drywalls of at least 30 minute fire resistance.

Leaf Facings

Notes:

1.   Other facings may be available, please contact Pacific Doors to discuss further options.

Leaf Edge

The leaf edges listed below are available for the TB30 door set

•  7 mm pine clashing

Meeting Stiles

The meeting stiles listed below are applicable to paired door sets only.

• Timber square - 7 mm pine clashing

Notes:

·         Any 30-minute doors with vision panels must have the same door construction as per the TB60 door spec. Leaf size restricted to 2400 x 1000 mm for single doors, 2200 x 380 (min) / 938 (max) mm for pair doors (For pair doors, any leaf larger than 592mm must be fitted with thermal bolt).

·         Multiple vision panels in a leaf are not allowed.

·         Circular vision  panels are not available.  same

·         The height and width of the vision panel must still fall within the maximum glazed area.

·         The distance between the vision panel cutout and any item of hardware shall be at least 60 mm.

Standard Vision Panel Cross Sections

Timber Bead	Aluminium Bead
	Not Applicable for this door set
